Product Features

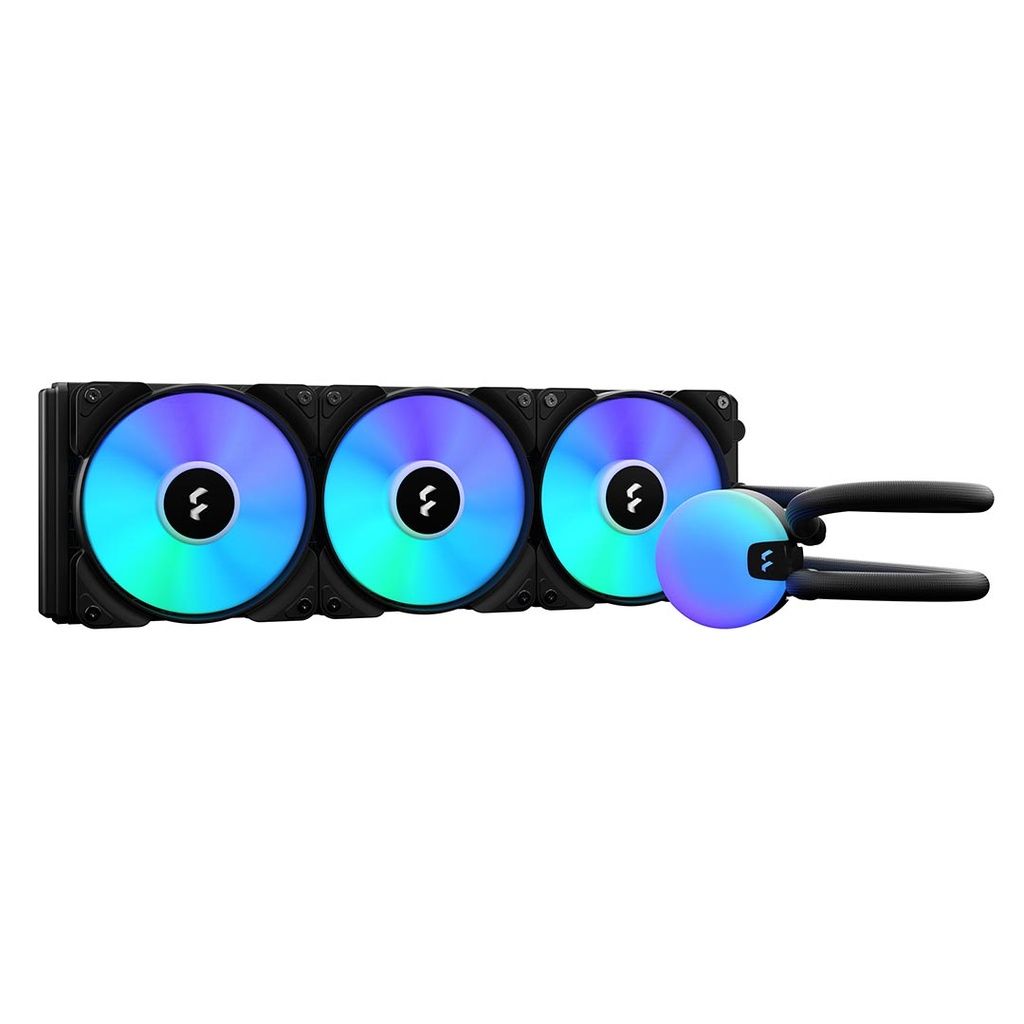

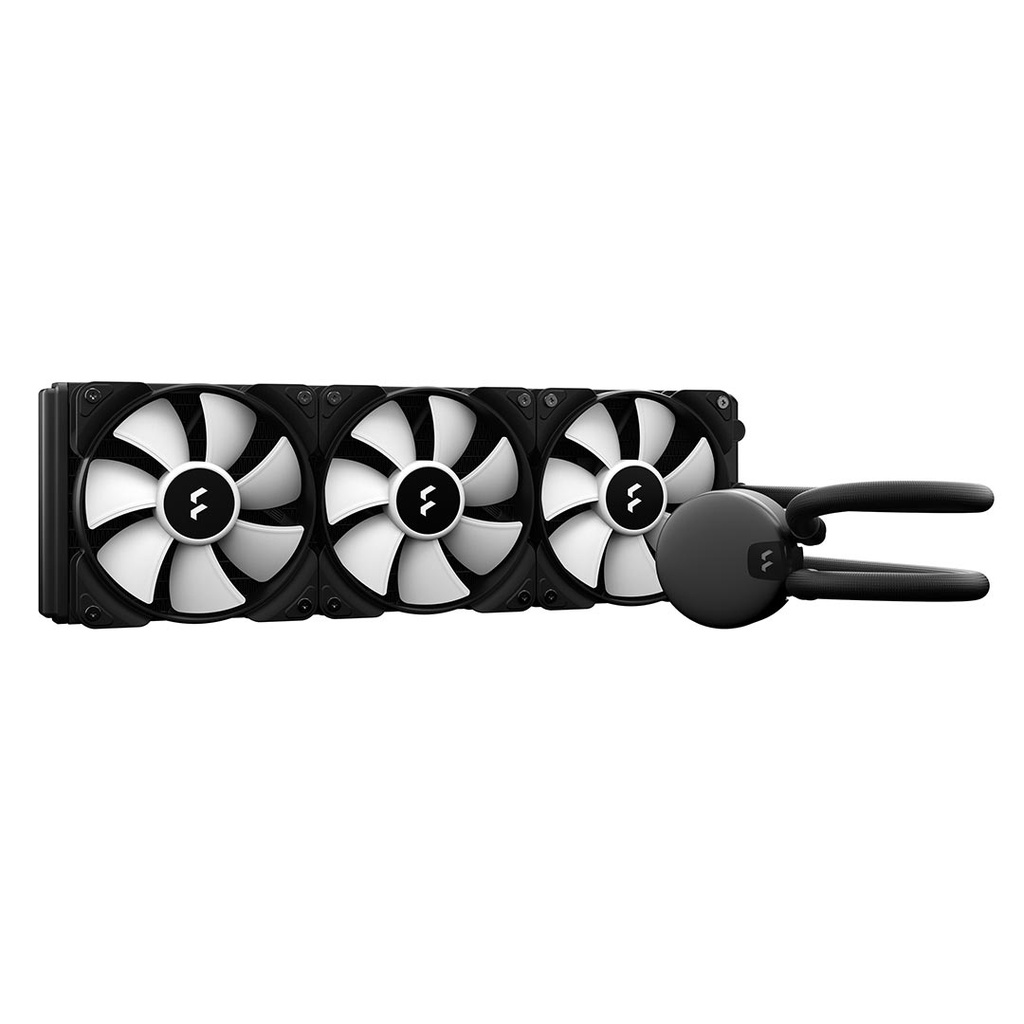

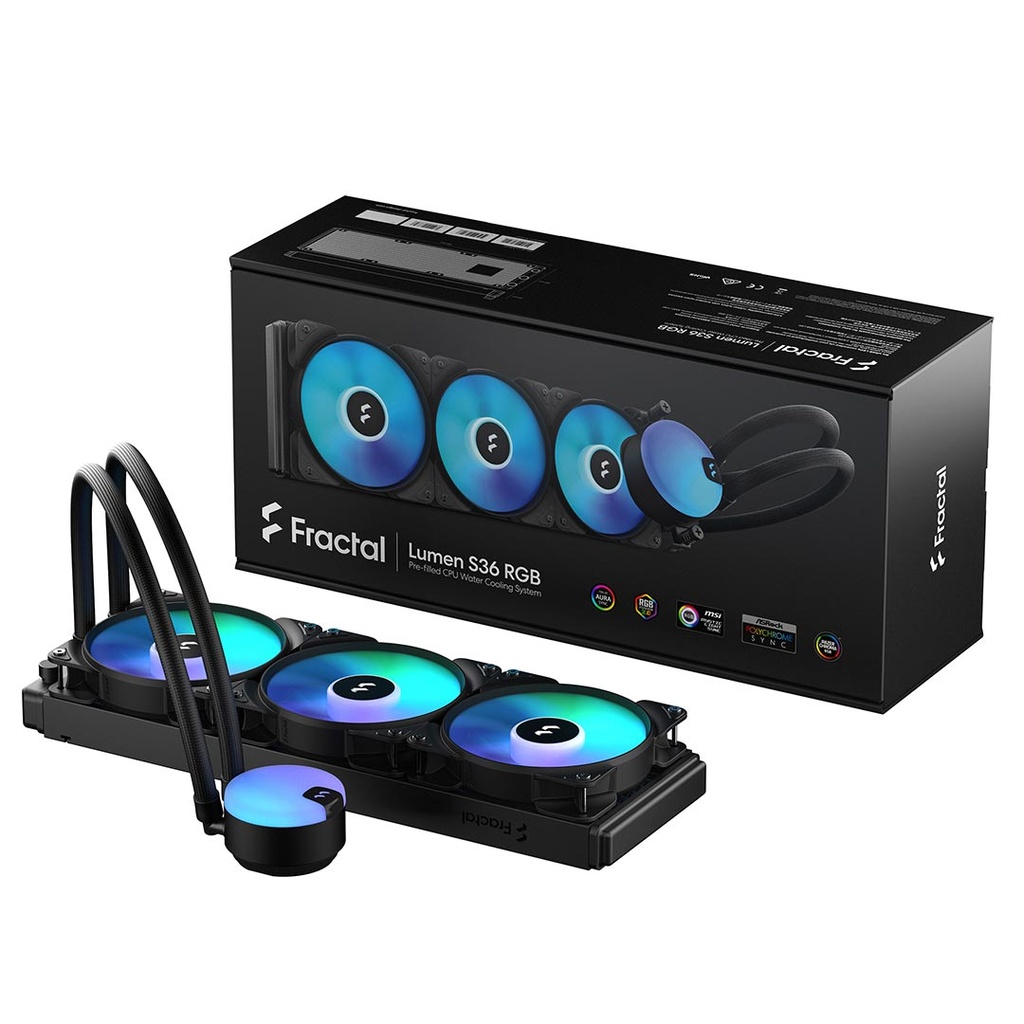

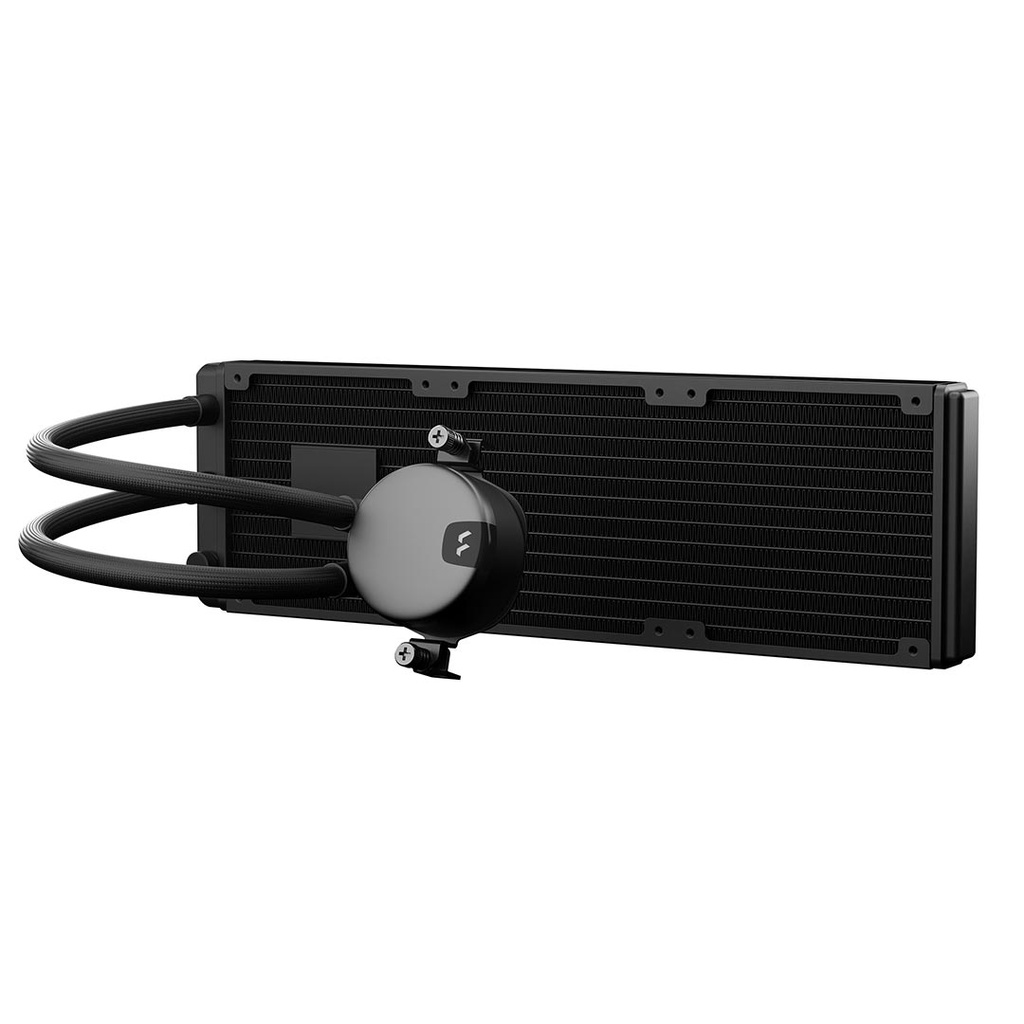

Lumen S36 RGB V2

Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA 1851 / 1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.

• • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
• • Six ARGB LEDs are yours to command via your motherboard or controller
• • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
• • Compatible with LGA 1851 / 1700 and AM5

General specifications

• Sockets supported (Intel)LGA 1700*/ 1851*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
• Sockets supported (AMD)AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
• * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
• Cold plate material Copper
• Thermal paste Pre-applied
• Tube length400mm
• Tube material Low-permeability rubber with braided nylon sleeve
• Fittings, block side Articulating 90-degree Elbow
• Fittings, radiator side Barbed fitting
• Block height43mm
• Block measurements (with fittings)79 x 67 mm
• Block diameter (main block body)67 mm

Fan specifications

• Fan type Aspect 12 RGB PWM
• Rotational speed500–2000 RPM
• Fan bearing Rifle bearings
• Fan PWM control Yes
• Fan acoustical noise<10–33.2 dBA
• Fan maximum air flow13-56 CFM
• Fan maximum static pressure0.230–2.34 mm H2O
• Fan input voltage12V
• Fan maximum input current0.37A
• Fan MTTF90,000 hours

Pump specifications

• Rotational speed4000 ± 10% RPM
• Bearing type Ceramic
• PWM control No
• Acoustical noise (full speed)22 dBA
• Maximum pressure1.8 mm H2O/ 17.6 kPa / 2.5 PSI
• Input voltage12V DC
• Input current (without fans)0.34 A
• MTTF50 000 hours

Radiator specifications

• Radiator dimensions392 x 120 x 27 mm
• Radiator housing material Aluminum
• Radiator fin material Aluminum
• Radiator fan screw threads6-32

Other

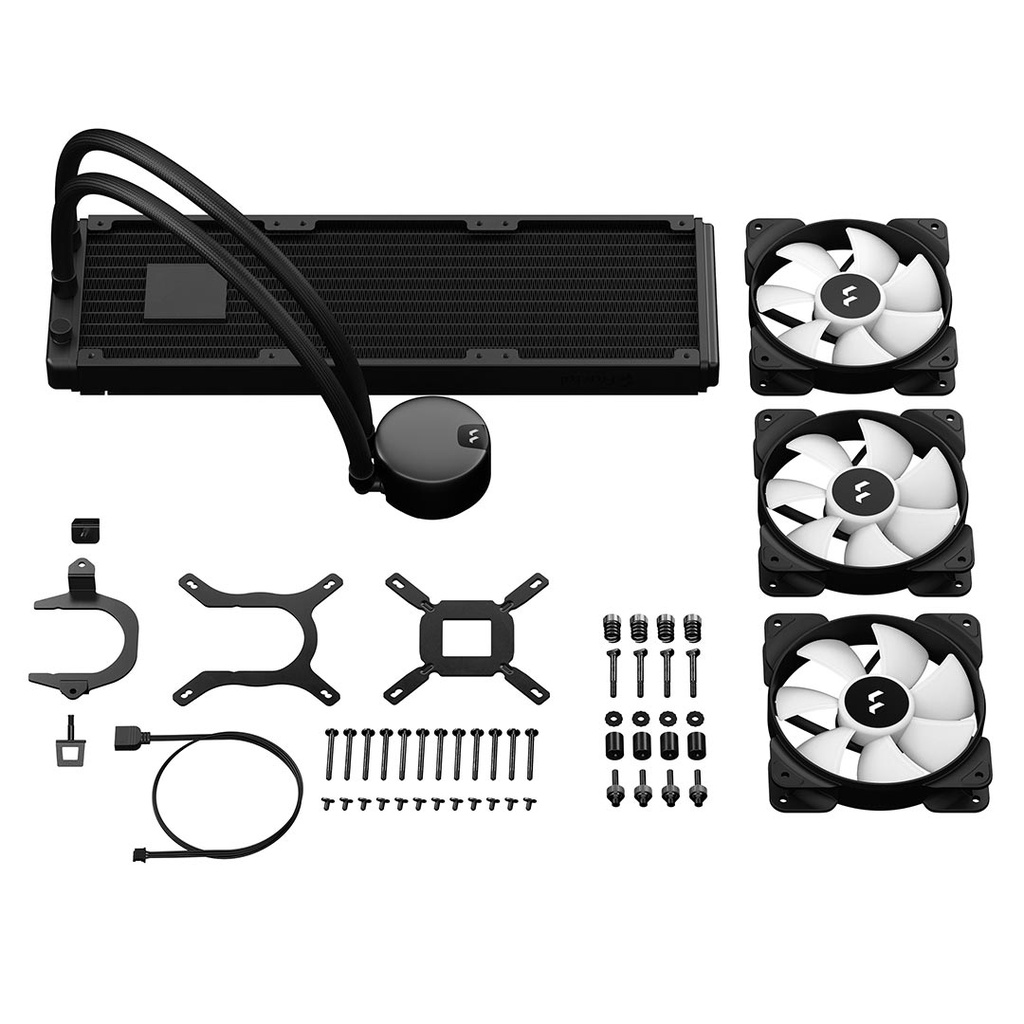

• Package contents CPU Cooler Assembly, 3x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
• Package dimensions448 x 205 x 137 mm
• Package weight2.20kg
