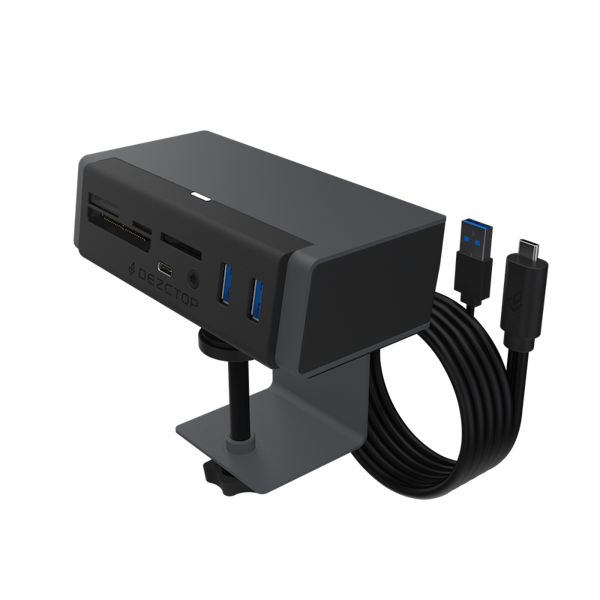

USB Type-C 7-in-1 Hub

With the flexibility to location in multiple fixing points on DEZCTOP desks, the USB-C 7-in-1 Hub provides numerous connectivity outputs from one USB-C and 1 USB 3.2 Gen2 input. The hub provides two USB 3.2 outputs, a USB-C output and a 4-in-1 memory card reader, along with an audio/microphone output jack. Remove the need for multiple adapters and reduce cable clutter with this specifically designed hub.

3.5mm AUX

The complete headset audio solution in an easy to access form factor.

USB 3.2 Gen 2 Speed

USB 3.2 Gen 2 Type-C can reach speeds up to 10Gbps.

USB Type-A port x 2

Multiply the USB-A ports with the built in hub function providing two easy access USB-A 3.2 outputs right on the desktop.

Tailored for Static Use

Clamp the USB-C 7-in-1 Hub anywhere at the edge of the tabletop as you wish. With the 10° angular surface, and anti-slip mat the hub provides perfect stability for inserting and removing devices with ease. The adjustable clamping mechanism makes it suitable for any desktop with 15-50mm thickness.

Converting Ports into 7 Functions

Connected through a USB-C and a USB-A (for power supply) port, the Hub is an all-in-one tool for your desktop IO needs. Containing 1 Type-C and 2 Type-A ports, four card sockets for SD, microSD, CompactFlash, and Memory Stick, respectively, and a 3.5mm audio/microphone jack.

Capturing Moments that Last Forever

The USB-C 7-in-1 Hub supports SD 4.0, CompactFlash, and Memory Stick cards. This gives high transfer speeds and full compatibility with the latest DSLR cameras.

Transferring Data at Up to 10 Gbps

Providing the USB-C input supports USB 3.2 Gen 2, all outputs will share the same performance standard. The hub provides full bandwidth passthrough to ensure no speed penalty, often not archived with other brands. The hub is also backwards compatible with earlier USB 3.2 Gen 1 and USB 2.0 devices giving you complete flexibility and future proofing.

Plug and Play, Driver-free Installation

The hub works right out of the box. Simply plug it in and it will work straight out of the box without the need for drivers. The USB-C 7-in-1 Hub is fully supported by the latest Windows 11, Windows 10, Windows 8.1, Windows 8, Windows 7, macOS, and Linux.

Keep Your Workspace Clean and Clutter-free with Bifrost

The USB-C 7-in-1 is compatible with any desk, but specifically designed to compliment the DEZCTOP Bifrost series desks. Cabling can then be hidden neatly to provide a sleek and stylish aesthetic with full practicality.

Input

USB Type-C

USB 3.2 Gen 2 x 1
Data Transfer Rate: Up to 10 Gbps (*)
Power: Up to 3A at 5V(**)
* The data transfer rate will depend on the input source and plugged USB devices both.
** The input and output current will depend on and are limited to the input source.

USB Type-A

For power supply

Output

USB Type-C

USB 3.2 Gen 2 *1
Data Transfer Rate: Up to 10 Gbps (*)
Power: Up to 2A at 5V(**)\
* The data transfer rate will depend on the input source and plugged USB devices both.
** The input and output current will depend on and are limited to the input source.

USB Type-A

USB 3.2 Gen 2 *2
Data Transfer Rate: Up to 10 Gbps (*)
Power: Up to 2A at 5V(**)
* The data transfer rate will depend on the input source and plugged USB devices both.
** The input and output current will depend on and are limited to the input source.

Compatible Memory Cards

SD / SDHC UHS I-II / SDXC UHS I-II
microSD / microSDHC UHS-I / microSDXC UHS-I
Memory Stick / MS PRO / MS PRO Duo / MS PRO-HG / MS PRO-HG Duo / MS PRO-HG Duo HX
CompactFlash Type I / II (UDMA 0-7)

Audio/ Microphone

3.5mm audio jack x 1, For headphone with 4-pole or 3-pole 3.5mm connector

Material

Steel, Plastic, Rubber

Dimensions (W x D x H)

5.5 x 2.9 x 5.1 in (14 x 7.5 x 13 cm)

Mounting

Clamped on 15-50 mm tabletop

Cable Length

1.5 m

System Requirement

Windows 11/ 10/ 8.1/ 8/ 7/ macOS / Linux
