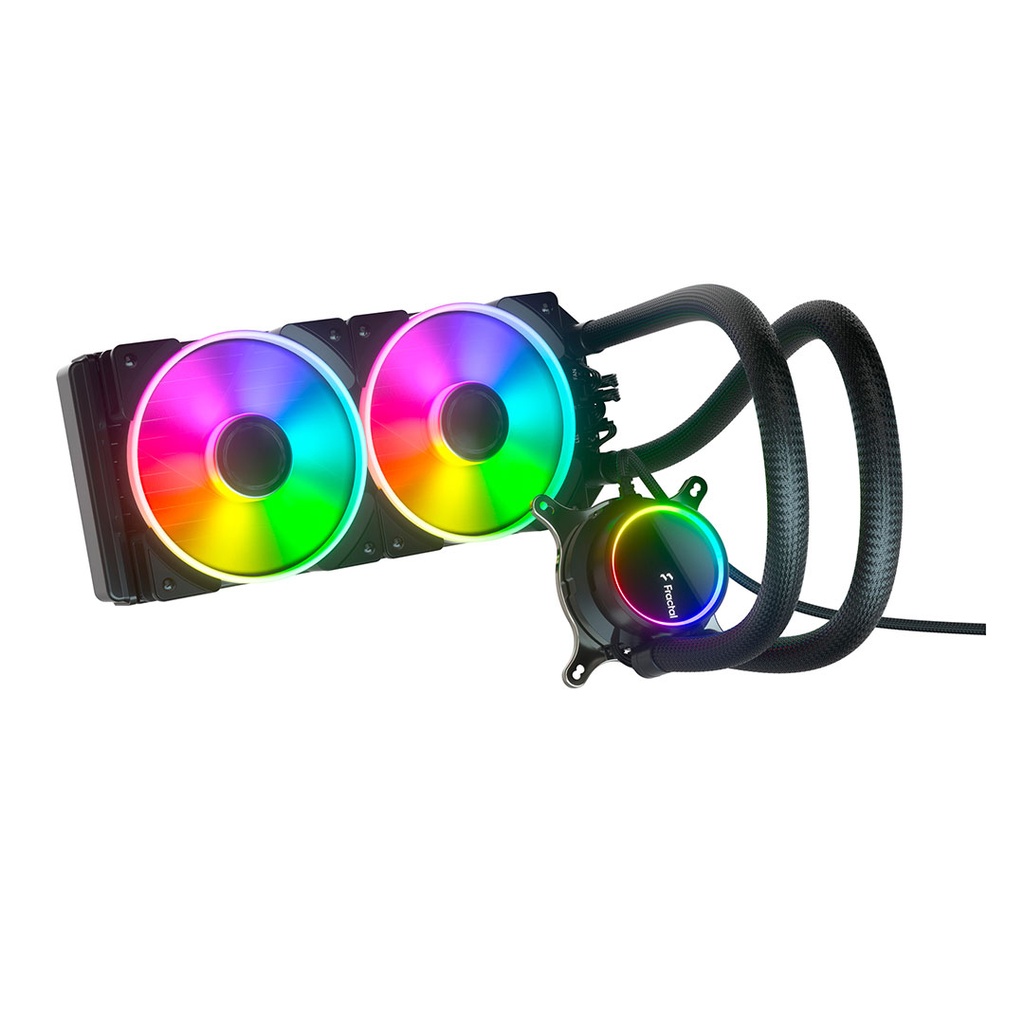

Fractal Design 240mm Celsius+ S24 CPU Liquid Cooler
Fractal Design 240mm Celsius+ S24 CPU Liquid Cooler
Free Delivery.
Orders Below 20 KD are Subjected to 1 KD Delivery Charge.
Product Features
Celsius+ S24 Dynamic
Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Compatible with most common Intel/AMD sockets, including LGA1851/1700 and AM5.
- • Tinted glass pump face with backlit logo and ARGB LED effects
- • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
- • Backed by a 5-year warranty for extended peace of mind
- • Compatible with LGA 1700 and AM5
General specifications
- Sockets supported (Intel)1700*, 1851*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
- Sockets supported (AMD)AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
- * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
- Cold plate material Copper
- Thermal paste Pre-applied
- Tube length400 mm
- Tube material Low-permeability rubber with braided nylon sleeve
- Fittings, block side Articulating 90-degree elbow
- Fittings, radiator side Straight rotary
- Fan control Dual mode (Auto/PWM)
- Note: The Celsius+ is NOT compatible with the Adjust R1
Fan specifications
- Fan type Dynamic X2 GP-12 PWM
- Rotational speed500 – 2000 RPM
- Bearing LLS
- PWM control Yes
- Acoustical noise (full speed)32.2 dBA
- Maximum air flow87.6 CFM
- Maximum static pressure2.3 mm H2O
- Input voltage12V DC
- Maximum input current0.2A
- MTBF100,000 hours
Pump specifications
- Rotational speed800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
- Bearing type Ceramic bearing and shaft
- PWM control Yes
- Acoustical noise (full speed)20 dBA
- Maximum pressure14.4 kPa / 1.46 mm H2O /2.0 PSI
- Input voltage12V DC
- Input current (without fans)0.36A
- MTTF50,000 hours
- Block height45 mm
- Block measurements (with fittings)86 x 75 mm
- Block diameter (main block body)62 mm
Radiator specifications
- Dimensions122 x 31 x 284 mm
- Housing material Aluminum
- Fin material Aluminum
- Fan screw threads6-32
Other
- Package contents Celsius+ S24 unit, 2x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
- Package Dimensions411 x 180 x 145 mm
