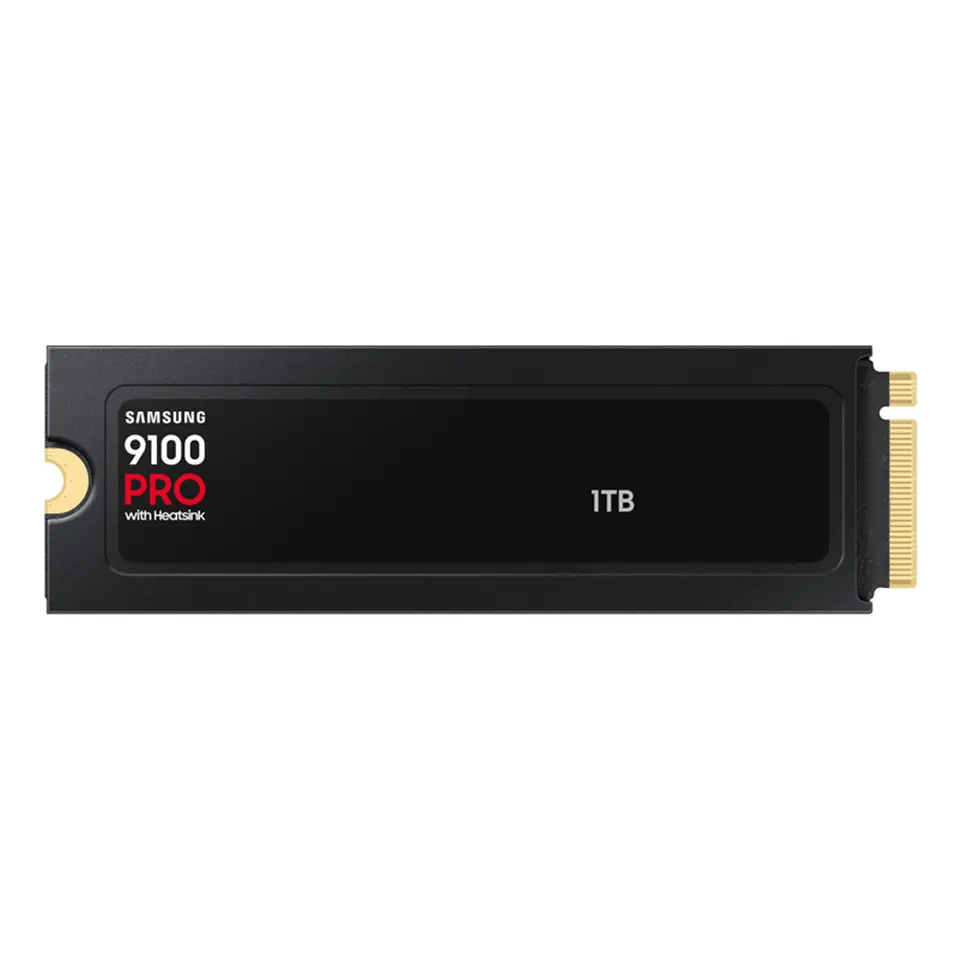

Samsung SSD 9100 PRO 1TB PCIe 5.0 NVMe M.2/HS – PS5 X Features

Overview

• Connectivity: PCIe® 5.0 x4, NVMe™ 2.0
• Sequential Read Speed: Up to 14,700 MB/s
• Sequential Write Speed: Up to 13,400 MB/s
• Form Factor: M.2 (2280)

Product Information

• Product Name: 9100 PRO Heatsink PCIe® 5.0 NVMe™ M.2 SSD - 1 TB
• EAN:  8806095811673

Other Specifications

• Average Power Consumption (Operating): Average: Read 7.6 W / Write 7.2 W
• * Actual power consumption may vary depending on system hardware and configuration.
• Power Consumption (Idle): 4 mW
• * Actual power consumption may vary depending on system hardware and configuration.
• Power Consumption (Device Sleep): 3.3 mW
• * Actual power consumption may vary depending on system hardware and configuration.
• Operating Voltage: 3.3 V ± 5% Permissible Voltage
• Reliability (MTBF): 1.5 million hours (MTBF)
• Operating Temperature: 0°C to 70°C
• Shock Resistance: 1,500 G continuous & 0.5 m/sec (half sine wave)

Special Features

• Application: AI PCs, Hardcore Gaming PCs
• Capacity: 1,000 GB
• Form Factor: M.2 (2280)
• Connectivity: PCIe® 5.0 x4, NVMe™ 2.0
• Device Dimensions (W x H x D): 80.15 x 25 x 8.88 mm (max.)
• Weight: 30.0 g
• Storage Memory: Samsung V-NAND TLC
• Controller: Samsung in-house controller
• Cache memory: Samsung 1GB Low Power DDR4X SDRAM

Performance

• Sequential read speed: up to 14,700 MB/s
• Sequential Write Speed: up to 13,400 MB/s
• Random read: up to 1,850,000 IOPS
• * Performance may vary depending on system hardware and configuration
• Random write: up to 2,600,000 IOPS
• * Performance may vary depending on system hardware and configuration
