Product Features

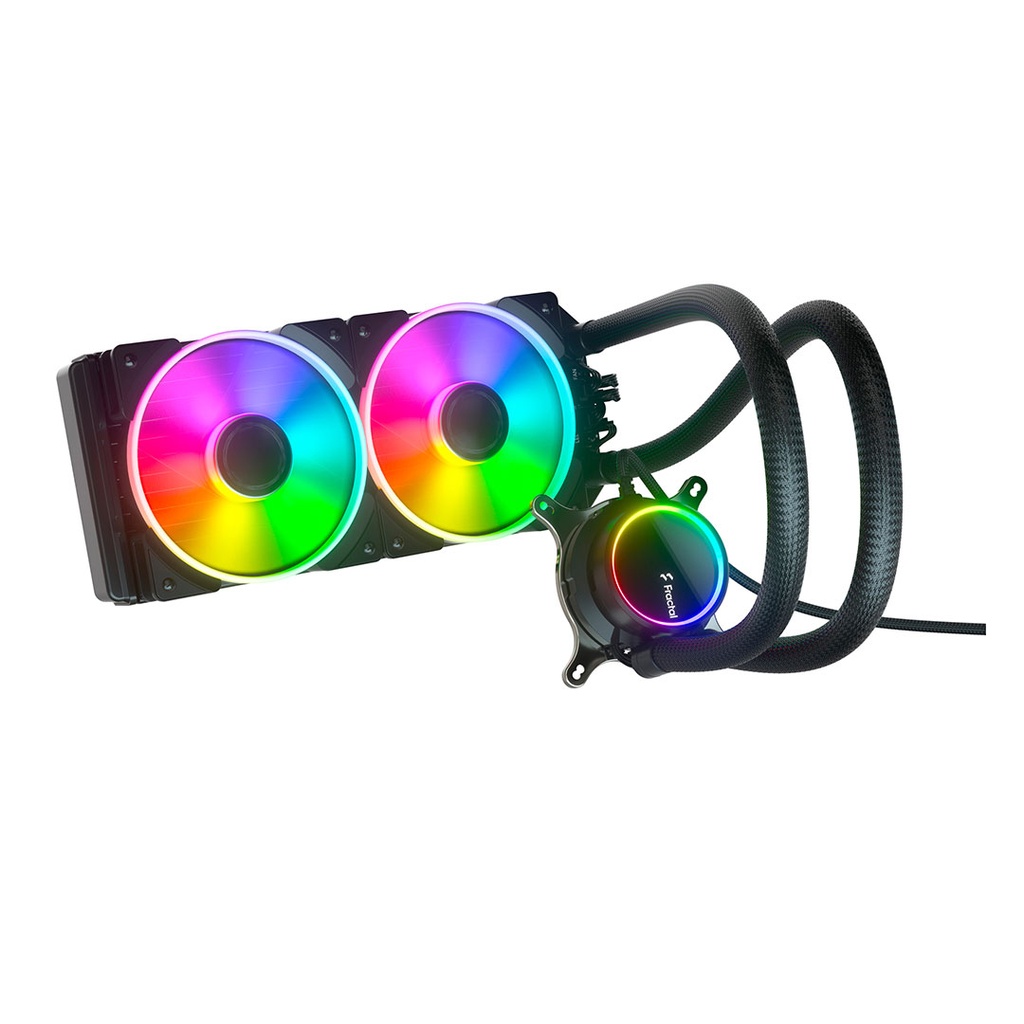

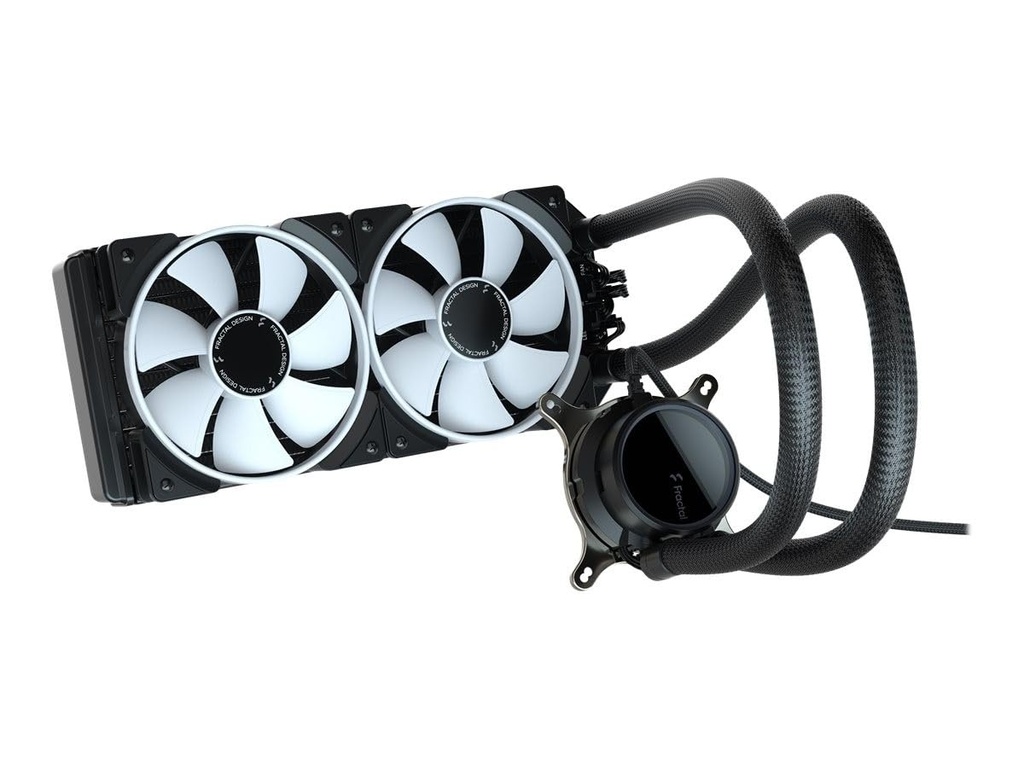

Celsius+ S24 Dynamic

Celsius+ takes AIO water cooling to a new level with an ARGB-accented pump face, a fully redesigned block and an upgraded on-radiator PWM fan hub with ARGB support. Compatible with most common Intel/AMD sockets, including LGA1851/1700 and AM5.

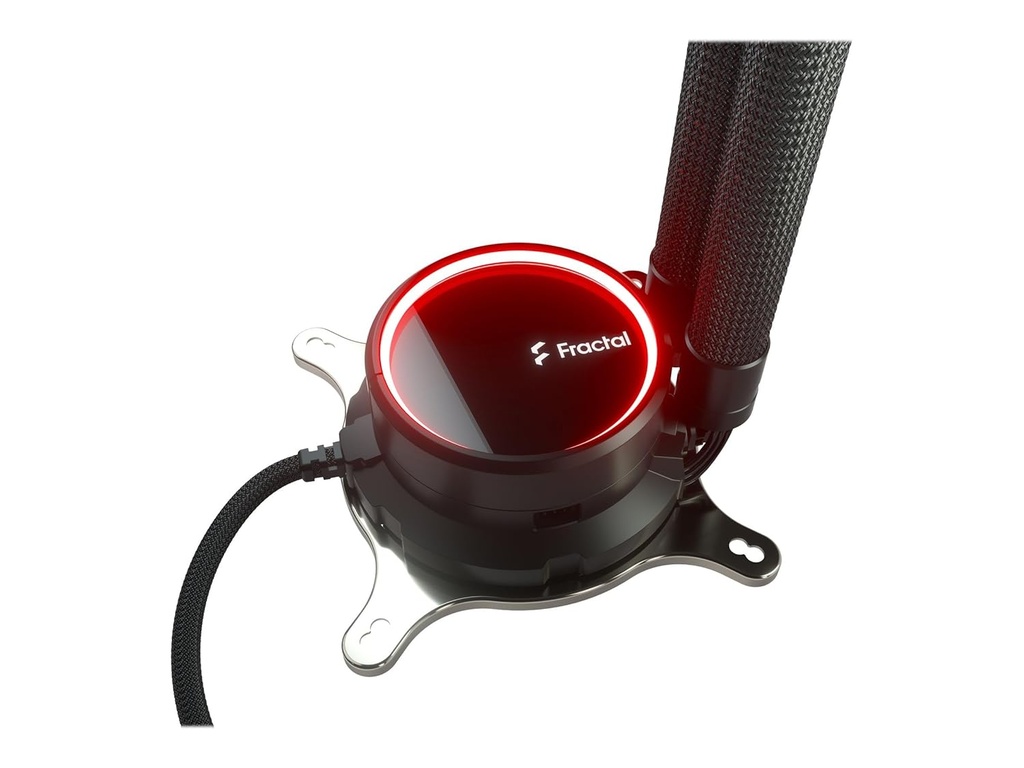

• • Tinted glass pump face with backlit logo and ARGB LED effects
• • Articulating elbow fittings make tubes easier to route and reduces tension on the pump
• • Backed by a 5-year warranty for extended peace of mind
• • Compatible with LGA 1700 and AM5

General specifications

• Sockets supported (Intel)1700*, 1851*, 1200, 1150, 1151, 1155, 1156, 1366, 2011, 2011-3, 2066
• Sockets supported (AMD)AM2, AM2+, AM3, AM3+, AM4, AM5, FM1, FM2, FM2+
• * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
• Cold plate material Copper
• Thermal paste Pre-applied
• Tube length400 mm
• Tube material Low-permeability rubber with braided nylon sleeve
• Fittings, block side Articulating 90-degree elbow
• Fittings, radiator side Straight rotary
• Fan control Dual mode (Auto/PWM)
• Note: The Celsius+ is NOT compatible with the Adjust R1

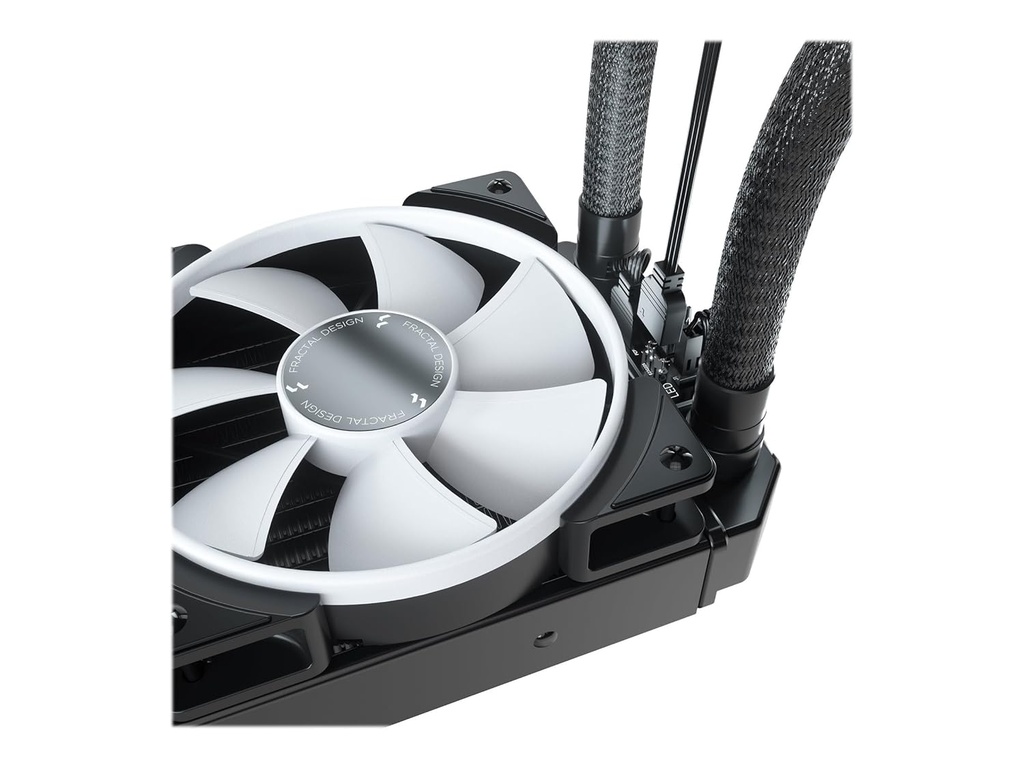

Fan specifications

• Fan type Dynamic X2 GP-12 PWM
• Rotational speed500 – 2000 RPM
• Bearing LLS
• PWM control Yes
• Acoustical noise (full speed)32.2 dBA
• Maximum air flow87.6 CFM
• Maximum static pressure2.3 mm H2O
• Input voltage12V DC
• Maximum input current0.2A
• MTBF100,000 hours

Pump specifications

• Rotational speed800-2800 RPM in normal use, 3500 RPM during thermal protection mode that activates if liquid temperature is over 60°C
• Bearing type Ceramic bearing and shaft
• PWM control Yes
• Acoustical noise (full speed)20 dBA
• Maximum pressure14.4 kPa / 1.46 mm H2O /2.0 PSI
• Input voltage12V DC
• Input current (without fans)0.36A
• MTTF50,000 hours
• Block height45 mm
• Block measurements (with fittings)86 x 75 mm
• Block diameter (main block body)62 mm

Radiator specifications

• Dimensions122 x 31 x 284 mm
• Housing material Aluminum
• Fin material Aluminum
• Fan screw threads6-32

Other

• Package contents Celsius+ S24 unit, 2x 120 mm fans, User manual, Mounting hardware for all listed sockets, Fan and radiator mounting screws
• Package Dimensions411 x 180 x 145 mm
