Product Features

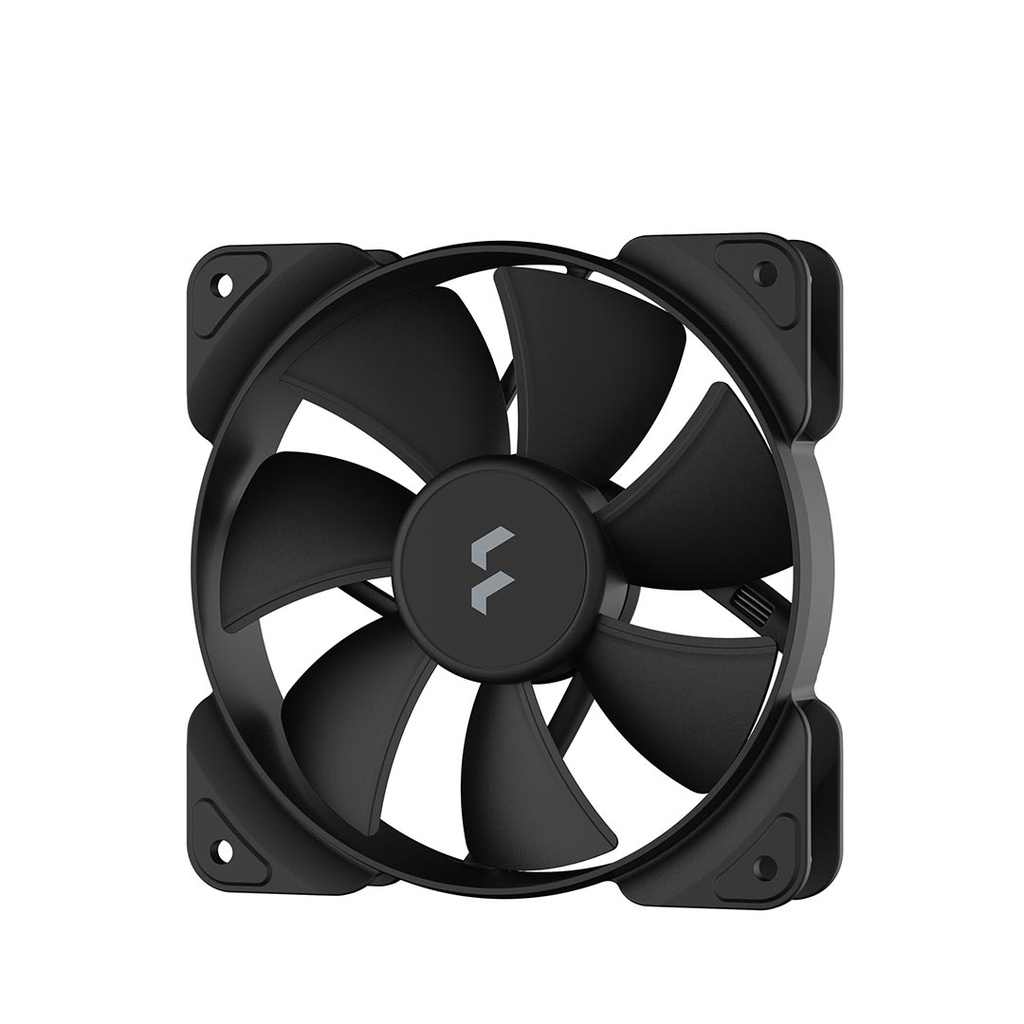

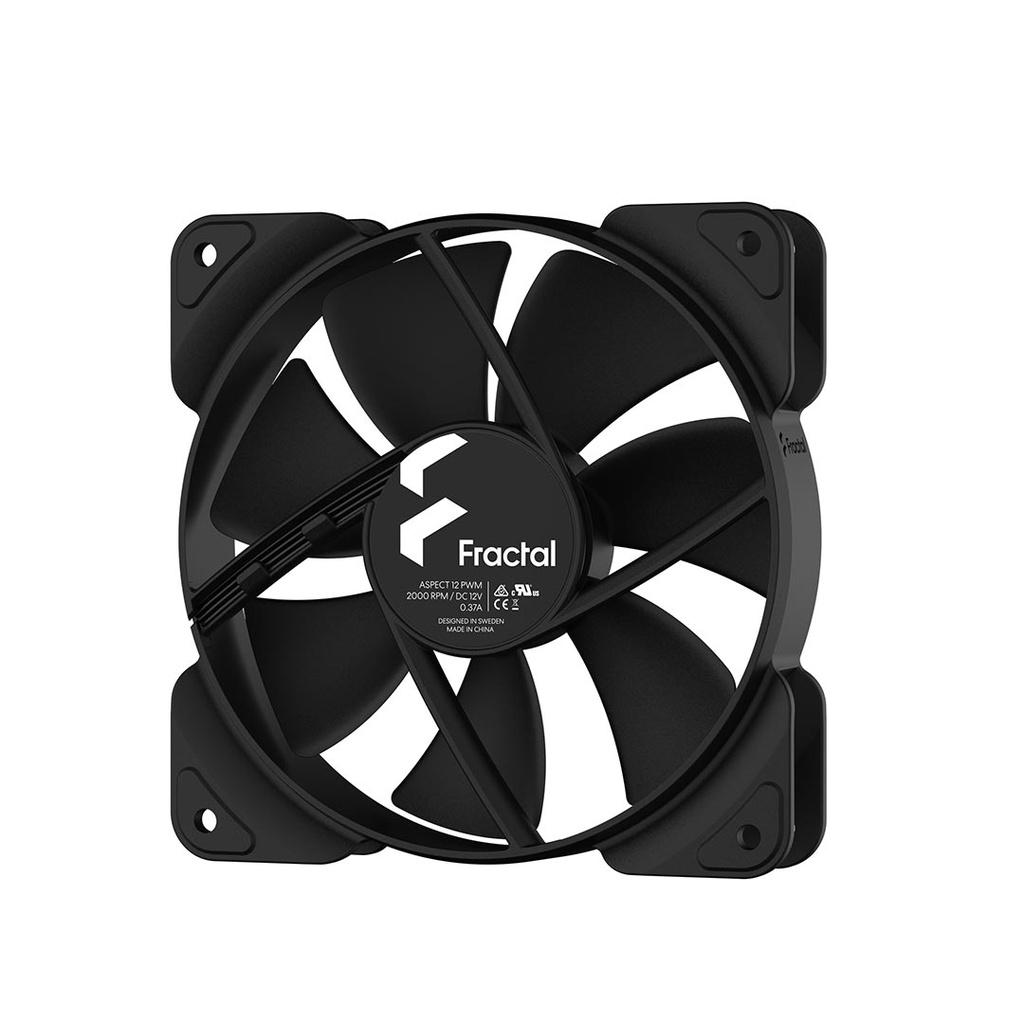

Aspect 12 PWM

Building on the core functionality of market favorites like Dynamic and Prisma, the Aspect series brings an exciting new aesthetic to the Fractal range of fans. Notable features include aerodynamic stator struts for lower turbulence, Trip Wire technology for enhanced blade efficiency, rifle bearings and built-in chaining support to simplify cable management.

• • Less turbulence thanks to aerodynamic stator struts
• • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency
• • PWM control with a wide RPM speed range

Specifications

• Size120 x 120 x 25 mm
• Screw hole pattern105 x 105 mm
• Power connector4-pin
• Bearing Rifle
• Number of blades7
• Rotational speed500 – 2000 RPM
• Noise level<10 – 33.2 dB(A)
• Max airflow (CFM)13 – 56 CFM
• Max airflow (m³/h)22.1 – 95.1 m³/h
• Max pressure0.23 – 2.34 mm H2O
• Fan typical input power1.68 W
• Fan max input current0.37 A
• Fan input voltage12 V
• Minimum startup voltage7 V
• MTTF90.000 h
• Unit weight135 g
• Cable length500 mm
• Cable type Black/white ribbon (allows chaining)

Other

• Package contents Aspect Fan, 4x Fan screw
• Package weight158 g
