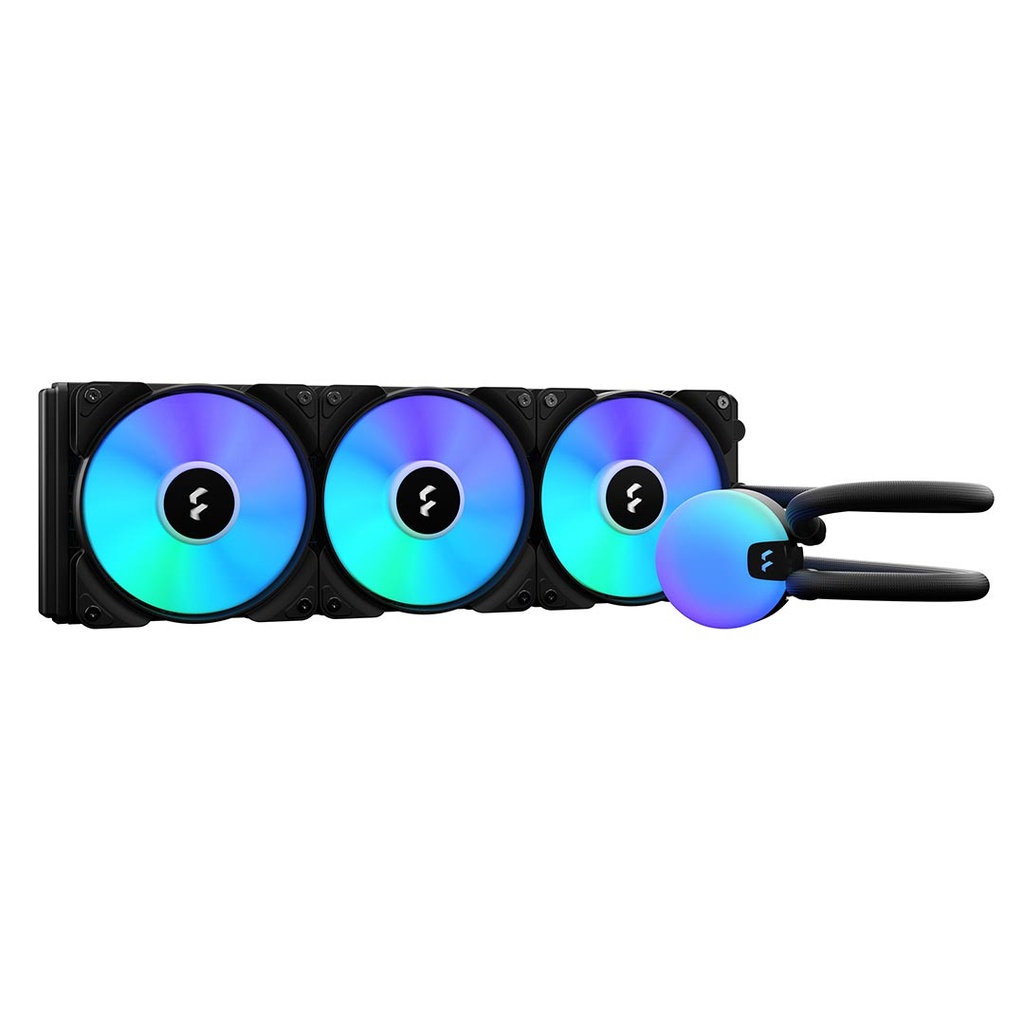

Fractal Design 360mm Lumen S36 V2 ARGB All In One Cooler
Fractal Design 360mm Lumen S36 V2 ARGB All In One Cooler
Free Delivery.
Orders Below 20 KD are Subjected to 1 KD Delivery Charge.
Product Features
Lumen S36 RGB V2
Customize your CPU water-cooling from subtle to stunning with Lumen’s six addressable LEDs that you can command via motherboard or controller. Compatible with most common Intel/AMD sockets, including LGA 1851 / 1700 and AM5 and RGB certified by industry standards, the Lumen offers high-end cooling performance and premium ARGB effects for new and seasoned builders alike.
- • Duality design provides both a stealthy and illuminated look, controlled from your motherboard RGB UI
- • Six ARGB LEDs are yours to command via your motherboard or controller
- • The removable top can be turned at 90-degree intervals, making the logotype horizontal independent of the mounting orientation
- • Compatible with LGA 1851 / 1700 and AM5
General specifications
- Sockets supported (Intel)LGA 1700*/ 1851*/1150/1151/1155/1156/1200 LGA 1366/2011/2011-3/2066
- Sockets supported (AMD)AM5 / AM4/FM2+/FM2/ FM1/AM3+/AM3/AM2+/AM2
- * Compatible using updated LGA 1700 bracket, contact Fractal support to request one if using an older version
- Cold plate material Copper
- Thermal paste Pre-applied
- Tube length400mm
- Tube material Low-permeability rubber with braided nylon sleeve
- Fittings, block side Articulating 90-degree Elbow
- Fittings, radiator side Barbed fitting
- Block height43mm
- Block measurements (with fittings)79 x 67 mm
- Block diameter (main block body)67 mm
Fan specifications
- Fan type Aspect 12 RGB PWM
- Rotational speed500–2000 RPM
- Fan bearing Rifle bearings
- Fan PWM control Yes
- Fan acoustical noise<10–33.2 dBA
- Fan maximum air flow13-56 CFM
- Fan maximum static pressure0.230–2.34 mm H2O
- Fan input voltage12V
- Fan maximum input current0.37A
- Fan MTTF90,000 hours
Pump specifications
- Rotational speed4000 ± 10% RPM
- Bearing type Ceramic
- PWM control No
- Acoustical noise (full speed)22 dBA
- Maximum pressure1.8 mm H2O/ 17.6 kPa / 2.5 PSI
- Input voltage12V DC
- Input current (without fans)0.34 A
- MTTF50 000 hours
Radiator specifications
- Radiator dimensions392 x 120 x 27 mm
- Radiator housing material Aluminum
- Radiator fin material Aluminum
- Radiator fan screw threads6-32
Other
- Package contents CPU Cooler Assembly, 3x Aspect 12 RGB fans, User manual, Intel mounting kit, AMD mounting kit, 5V ARGB cable
- Package dimensions448 x 205 x 137 mm
- Package weight2.20kg
